Cable Festoon & Conductor Bar Systems Designed for Indoor & Outdoor Crane Electrification
VAHLE offers top-of-the-line conductor bar and cable festoon systems for crane electrification.
Safety, durability and efficiency are a top priority for us and the industries we serve. As a result, our cable management systems and power rails are designed according to standard industry requirements and environmental conditions.
At VAHLE, we know unplanned downtime caused by equipment malfunctions or general wear and tear can have costly results. That’s why our products are made from high-quality materials and built for high resistance, reducing the time and money spent on crane maintenance. For example, our insulated and open conductor bar systems made with copper components rarely show wear and tear, making them durable and economical.
VAHLE cable management and conductor bar systems are built to provide a reliable, uninterrupted power supply to cranes in demanding environments. From frost to extreme heat, our power supply systems can withstand adverse conditions including abrasive dust, acid and salty atmospheres.
To accommodate various crane specifications, our versatile open conductor systems can be adapted to suspended and curved track layouts. Equally adaptable, our enclosed conductor bar systems are compact and contact-protected for high-rated currents in both indoor and outdoor crane applications.
Supplying Power to Cranes in Various Industries
From simple bridge cranes to fully automated steel mill cranes, our extensive catalog of systems contains electrification and automation solutions for various crane applications.
Our bridge and runway electrification solutions include conductor rails and cable management systems optimized for overhead cranes in warehouses, factories and industrial settings. VAHLE conductor bar and festoon power systems also power workstation cranes present in similar facilities.
Industrial electrification solutions include power rails, enclosed conductor systems and festoon systems for process cranes. These crane accessories are used in production facilities such as warehouses, aircraft production and service, automotive plants, recycling centers and steel mills and coke plants.
In addition to these industries, VAHLE offers acid- and corrosion-resistant festoons and time-tested conductor bars for specialty applications such as metallurgical cranes in steel mills. For example, variations of our insulated or unipole conductor bars are designed to meet the complex requirements for cranes in galvanizing and pressing plants
Data Communication & Positioning Systems for Crane Automation
VAHLE offers indoor and outdoor data communication and absolute positioning systems (APOS). The APOS Magnetic is easily integrated with VAHLE conductor bar systems and data transfer products, such as the Slotted Microwave Guides Extreme (SMGX).
APOS Magnetic contains an intelligent reading head that transmits data information downstream to the control systems, including the SMGX. This data communication system provides reliable mobile data transmission for indoor/outdoor applications, such as crane systems and amusement rides.
Benefits
- Acid and corrosion resistance
- High-heat resistance
- Indoor/outdoor applications
- Reduce maintenance and system costs
- Mitigate labor risks and wiring errors
- Improve reliability and capacitance
- Reliable data transmission and signal quality
Product highlights

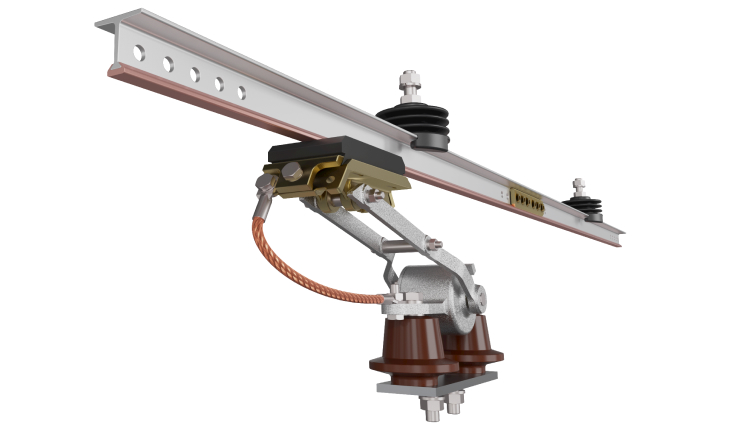

Open Conductor Rails
- 200A – 2,360A (continuous current).
- 4 – 5 Copper conductors in plastic housing.
- Wide temperature range: -40 to +200°C (-40 to 390°F)
- Designed for extreme environmental conditions, including chemicals, snow, icing and dust.
- Aluminum copperhead rails, steel copperhead rails and solid copper rails.
- Invented by Paul Vahle in 1912, these rails are still the best solutions for cranes and machines in metallurgical plants and coke plants.

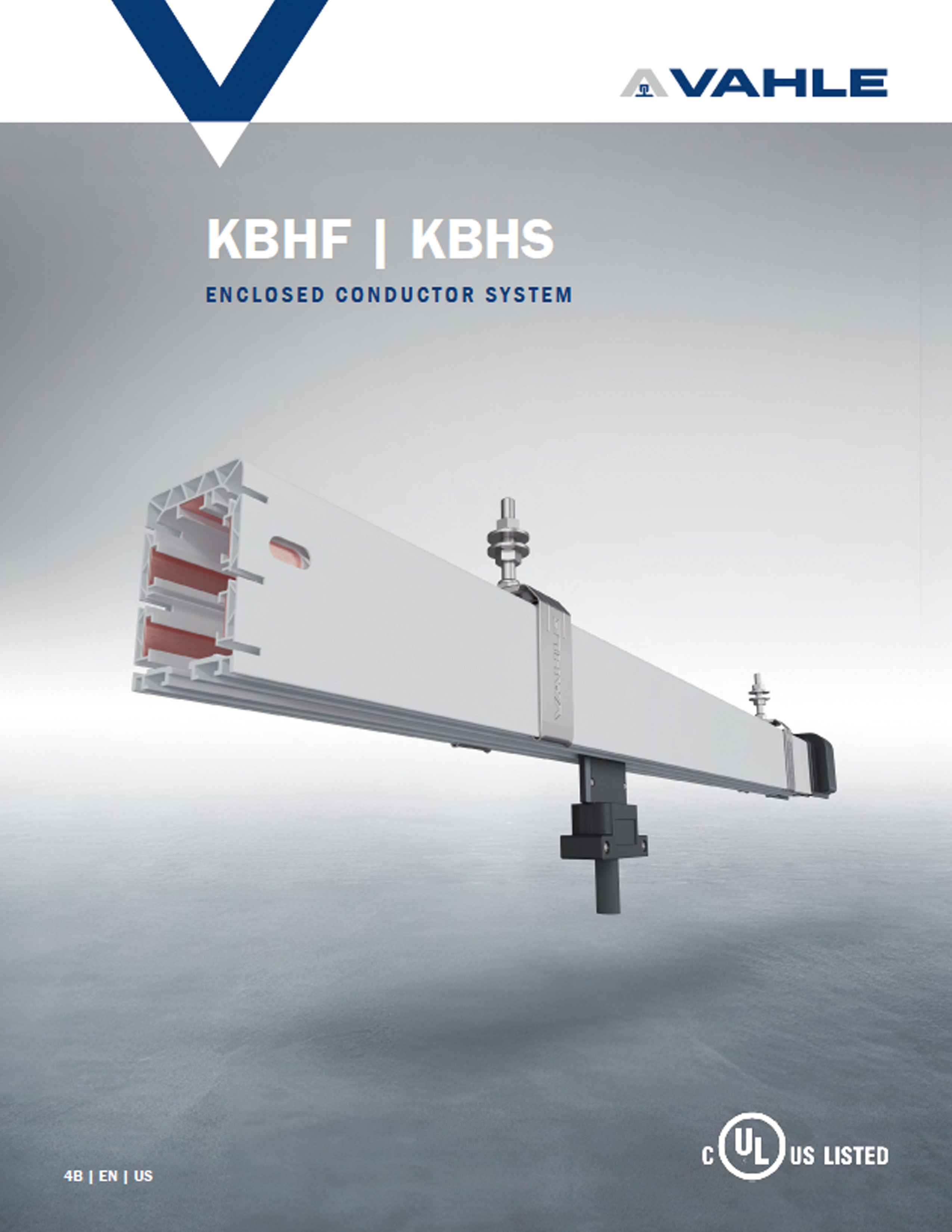

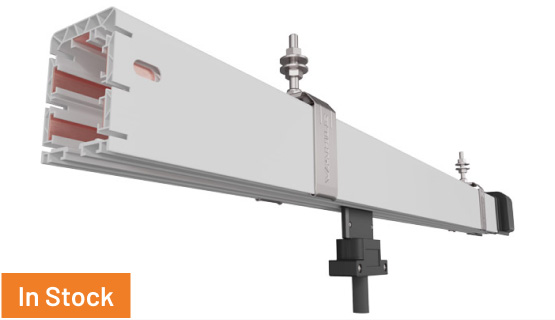

KBHF/KBHS Enclosed Conductor Rails with Sealing Strips
- 63A – 200A
- 4 – 5 Copper conductors in plastic housing.
- Resistance to chemicals at 45°C (113°F): Gasoline, mineral oil, grease, sulfuric acid up to 50%, caustic soda up to 50% and hydrochloric acid up to 25%, concentrated.
- Optional curves, transfers and switches.

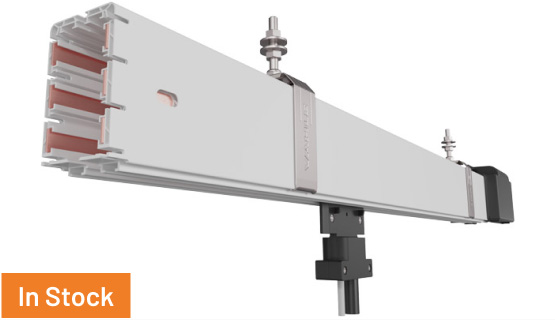

MKHF/MKHS Enclosed Conductor Rails with Sealing Strips
- 63A – 200A
- 6 – 10 Copper conductors in a plastic housing.
- Resistance to chemicals at 45°C (113°F): Gasoline, mineral oil, grease, sulfuric acid up to 50%, caustic soda up to 50 % and hydrochloric acid up to 25%, concentrated.
- Optional curves, transfers and switches.

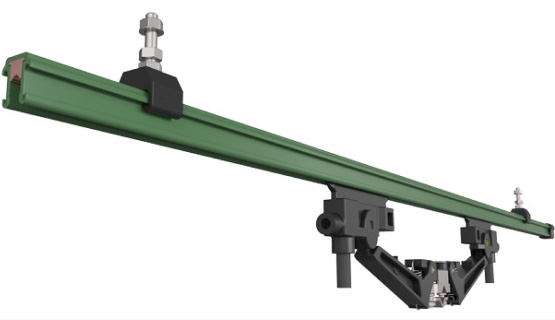

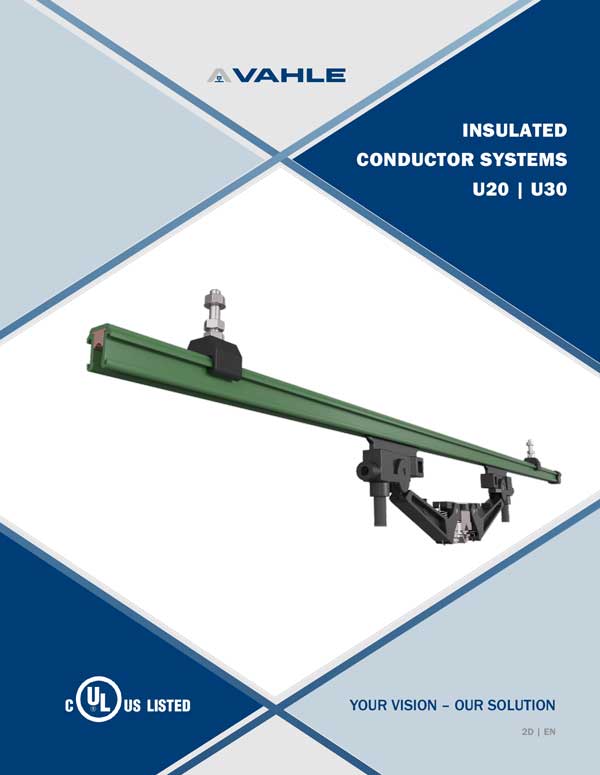

U20 and U30 Heavy-Duty Unipole Conductor Rails
- 210A – 530A
- Durable plastic shrouding and solid copper conductors.
- Resistance to mineral oil, fats, caustic soda up to 25%, hydrochloric acid up and sulfuric acid up to 50%, concentrated.

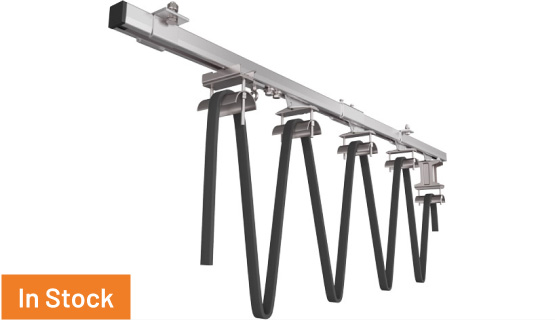

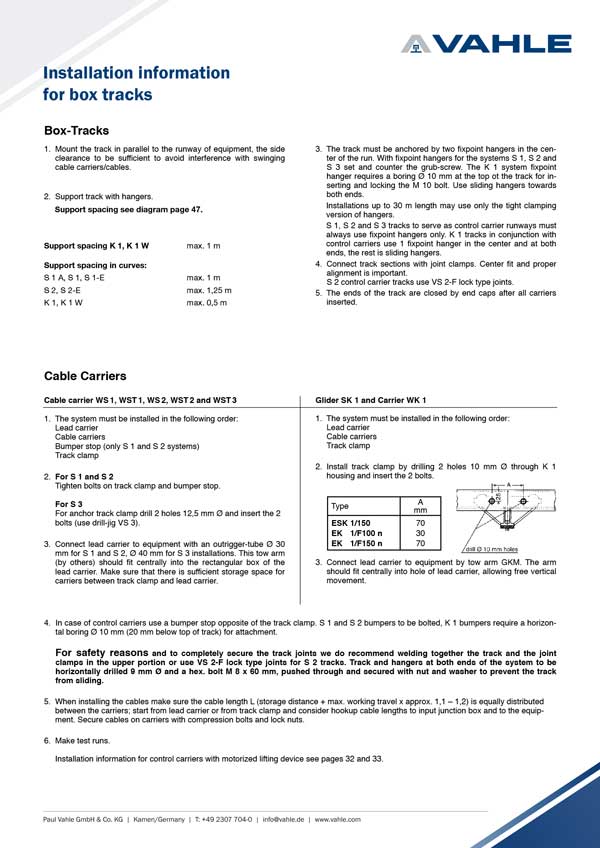

Festoons

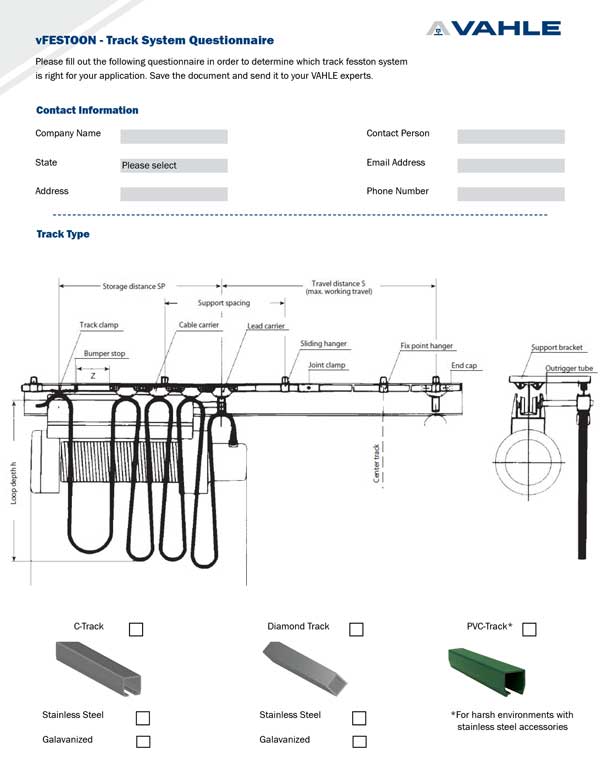

- Plastic profile, plastic gliding carriers or stainless-steel carriers with wheels for K1 track.
- Stainless-steel track and/or cable carriers for C-track.

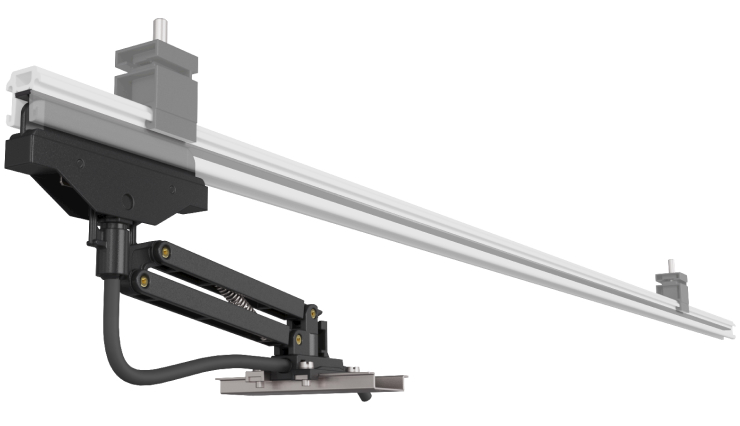

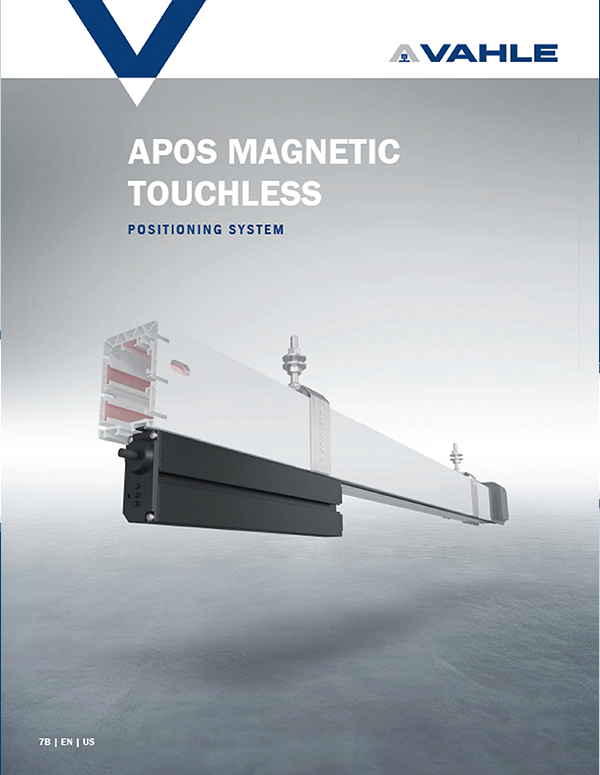

Absolute Positioning System (APOS) Magnetic
- Magnetic code band installed in the housing of KBH, MKH and U10 with travel speeds up to 12 m/s with a system length of up to 515 meters.
- Withstands temperatures from – 14°C to 55 °C and environmental conditions such as lightning, dust and humidity.

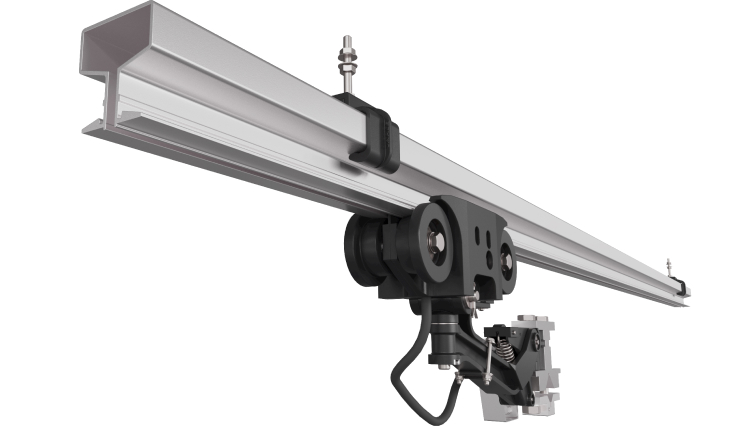

SMGX Data & Communication System
- Offering up to 100 Mbps data transfer rate, 24 VDC supply voltage and 500mA power consumption. Contains multiple ethernet ports, HF connectors and SD card slot for universally usable replacement unit.
- Resistance to indoor/outdoor environments for KBH, MKH conductor systems and STS port cranes. Storage temperatures range from – 15°C to 60°C.
